Project Description

cf8m ball valve 2pc high platform, which can be used in water supply and drainage project.

cf8m ball valve 2pc high platform technical specification:

Design: API608

Working Pressure:1000PSI PN64

Working temperature: -20-232 degree Celsius

Medium: water, oil, gas or other corrosive liquid

Threaded standard: NPT, BSPT, BSP DIN295/2999

Face to Face: ASME B16.10

End Flange: ASME B16.5

Testing: API598

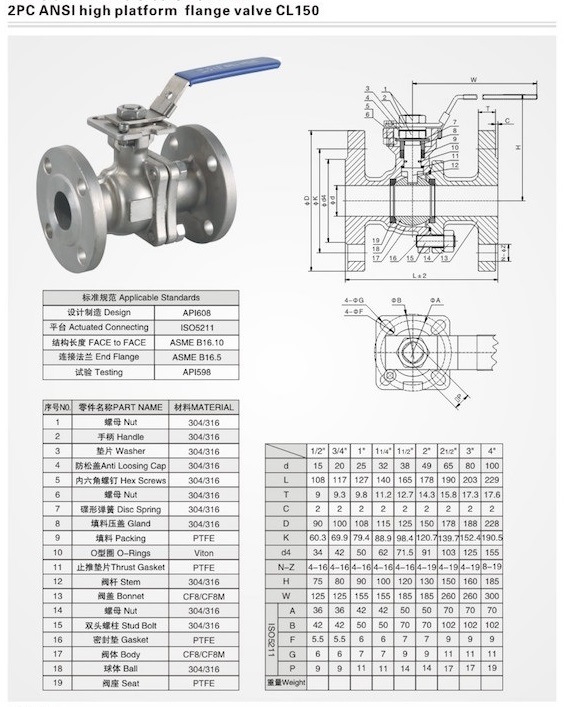

cf8m ball valve 2pc high platform Material List

  1. Nut: SS304/316
  2. Handle: SS304/316
  3. Washer: SS304/316
  4. Anti Loosing cap: SS304/316
  5. Hex Screws: SS304/316
  6. Nut:SS304/316
  7. Disc Spring: SS304/316
  8. Gland: SS304/316
  9. Packing: PTFE
  10. O-ring: Viton
  11. Thrust Gasket: PTFE
  12. Stem: SS304/316
  13. Bonnet: CF8/CF8M
  14. Nut: SS304/316
  15. Stud Bolt:SS304/316
  16. Gasket: PTFE
  17. Body: CF8/CF8M
  18. Ball: SS304/316
  19. Seat: PTFE

2pc high platform ball valve
