Project Description

wcb ball valve with handle operator, which can be used in water supply and drainage project.

wcb ball valve with handle operator technical specification:

Design: API/DIN

Working Pressure:1000PSI PN64

Working temperature: -20-232 degree Celsius

Medium: water, oil, gas or other corrosive liquid

Threaded standard: NPT, BSPT, BSP DIN295/2999

wcb ball valve with handle operator Material List

  1. Valve body: WCB
  2. Bonnet: WCB
  3. Ball: SS304/316
  4. Stem: SS304/316
  5. Seat: PTFE
  6. Gasket: PTFE
  7. Thrust Gasket: PTFE
  8. Packing: PTFE
  9. Gland Nut: Stainless steel
  10. Handle: Stainless steel
  11. Spring Washer: Stainless steel
  12. Nut: Stainless steel

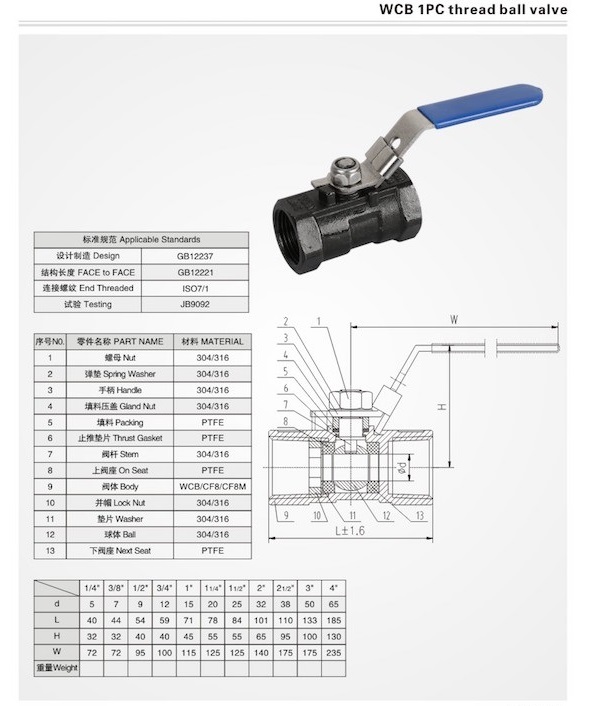

wcb ball valve drawing
