Project Description
DN1200 gate valve resilient seat DI body, which can be used in water supply and drainage project.

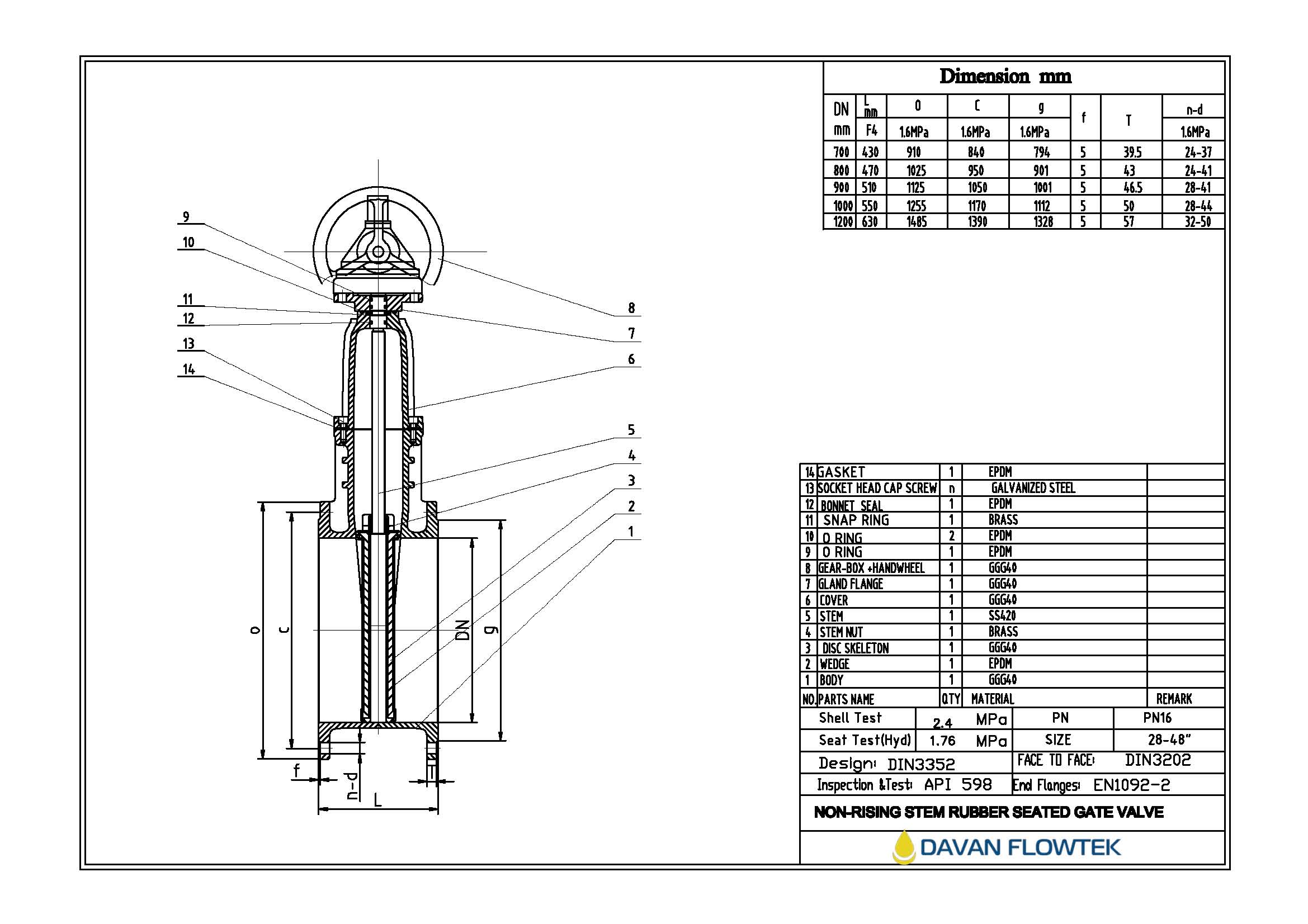

DN1200 gate valve resilient seat DI body technical specification:
Valve Design: DIN3352 F4/F5 BS5163
Face to Face: DIN3352 F4/F5 BS5163
Flange Drilling: EN1092-2
Hydraulic Test: ISO 5208
Shell Test Pressure: 24 bar
Sealing Test Pressure: 17.6 bar

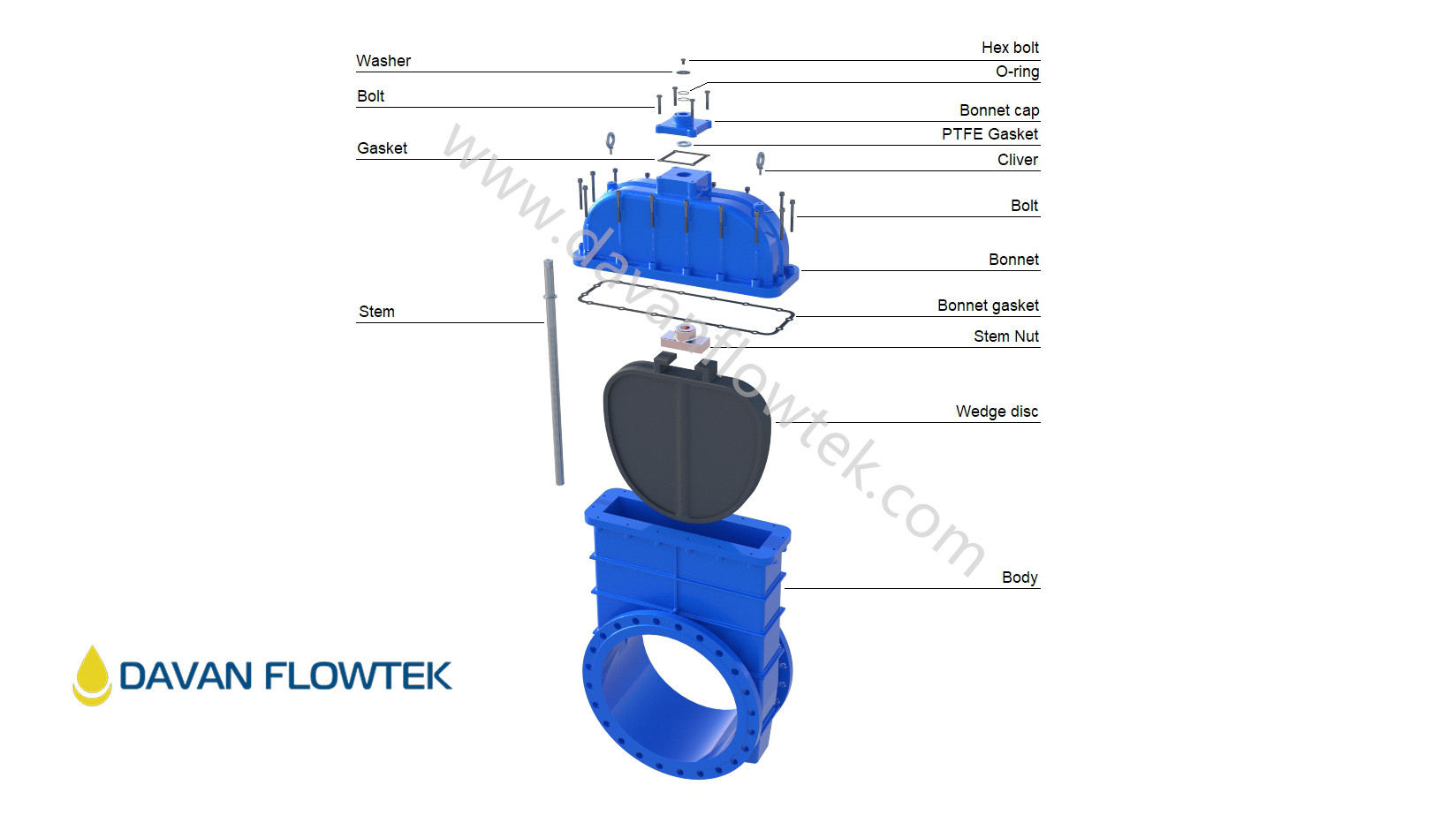

DN1200 gate valve resilient seat DI body Material List
Item No. | Part Name | Specification |
1 | Body | Ductile Iron GGG40/50 |
2 | Wedge | Ductile Iron GGG40/50 |
3 | Wedge Coating | NBR/ EPDM EN681-1 |
4 | Wedge Nut | Copper Alloy |
5 | Stem | Stainless Steel X20 Cr13 |
6 | Bonnet Gasket | NBR/ EPDM EN681-1 |
7 | Bonnet | Ductile Iron GGG40/50 |
8 | O Ring Back Sealing | EPDM/ NBR |
9 | Stem Collar | Stainless Steel/ Brass |
10 | O-Ring | EPDM/ NBR |
11 | O-Ring | EPDM/ NBR |
12 | Stuffing Nut | Copper Alloy |
13 | Dust Guard | EPDM/ NBR |
14 | Hand wheel | Ductile Iron GGG40/50 |
15 | Stem Cap | Ductile Iron GGG40/50 |
