Project Description

3pc wcb ball valve with threaded connection, which can be used in water supply and drainage project.

3pc wcb ball valve with threaded connection technical specification:

Design: DIN3357

Working Pressure:1000PSI PN64

Working temperature: -20-232 degree Celsius

Medium: water, oil, gas or other corrosive liquid

Threaded standard: NPT, BSPT, BSP DIN295/2999

Face to Face: DIN3202-M3

Testing: DIN3230/EN12266

3pc wcb ball valve with threaded connection Material List

  1. Nut: SS304/316
  2. Spring Washer: SS304/316
  3. Handle: SS304/316
  4. Gland: SS304/316
  5. Packing: PTFE
  6. Thrust Gasket: PTFE
  7. Stem: SS304/316
  8. Nut: SS304/316
  9. Bolt: SS304/316
  10. Spring Washer: SS304/316
  11. Bonnet: WCB/CF8/CF8M
  12. Seat: PTFE
  13. Body: WCB/CF8/CF8M
  14. Ball: SS304/316

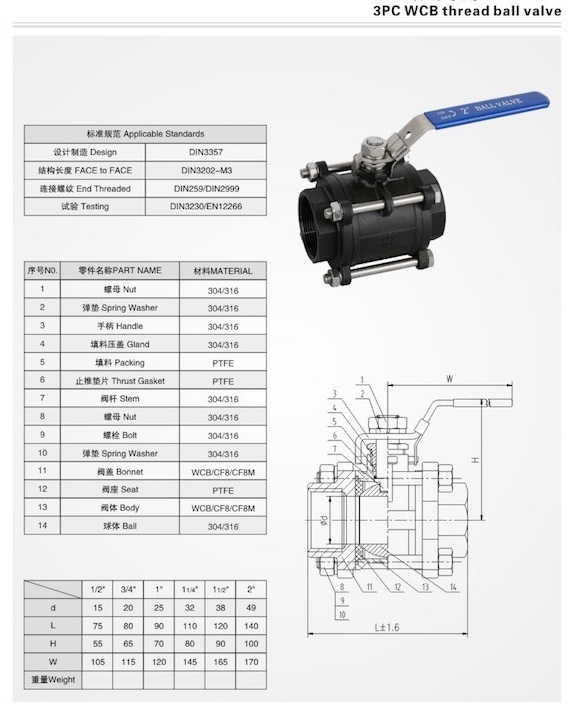

3pc wcb ball valve drawing
