Project Description

single acting pneumatic actuator with solenoid valve, which can be used in water supply, oil, gas and drainage project.

single acting pneumatic actuator with solenoid valve technical specification:

  1. Full conformance to the specification ISO5211, DN3337
  2. High intensity aluminum body with long life using
  3. All acting surface adopt high quality bearing in low friction, high using life without noise
  4. Same outline actuator have the functional modes of double acting and single acting.  And Single acting has the normally-open and normally-close styles
  5. Multi function indicator with NAMUR is convenient for mounting accessories
  6. Different O-rings materials are available for high and low temperature.
  7. Solenoid valves are easily mounted without any connecting plank

single acting pneumatic actuator with solenoid valve Material List

  1. Indicator: Position indicator with NAMUR is convenient for mounting accessories such as Limit Switch box and so on.
  2. Pinion: As standard of ISO5211
  3. Actuator body: Aluminum alloy in ASTM6005
  4. End caps: Die-casting aluminum powder polyester painted
  5. Pistons: Fast operation, reversing simply inverting the pistons
  6. Travel adjustment: The adjustment bolts can adjust +-5 degree at both directions easily and precisely
  7. High performance springs: High quality material for resistant to corrosion and longer service life
  8. Bearing and Guides
  9. O-rings: NBR rubber o-rings provide trouble-free operation at standard temperature ranges. Viton or silicone can be chosen.

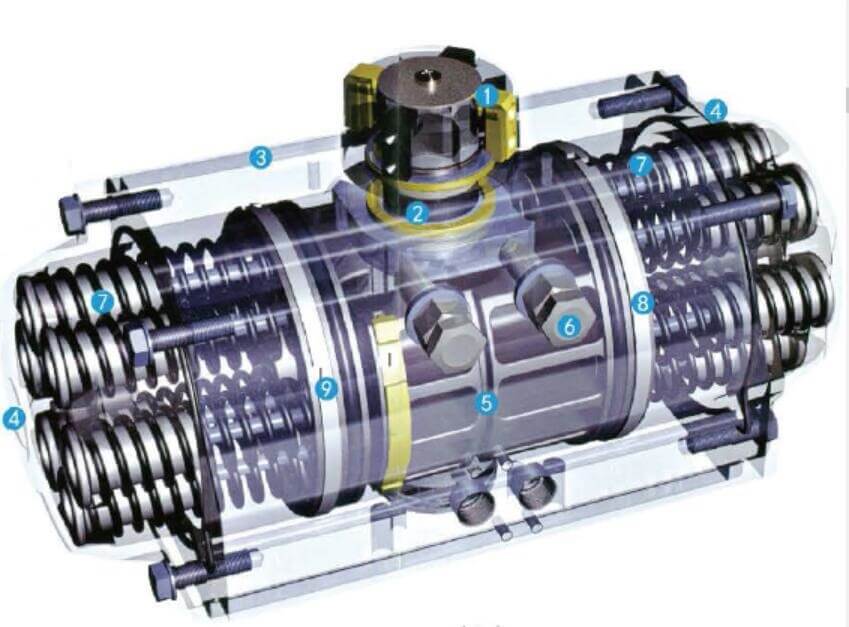

pneumatic actuator drawing

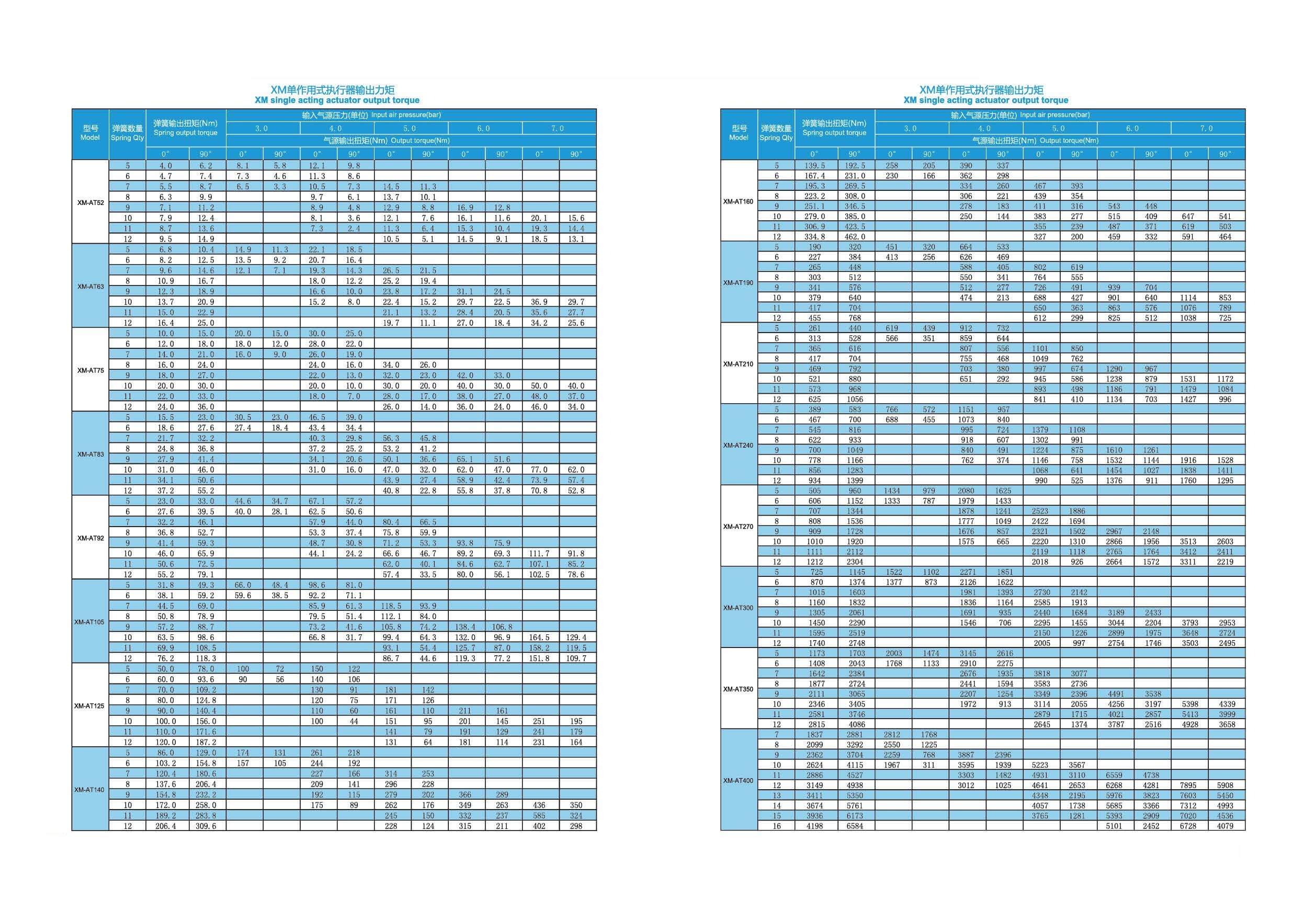

single acting pnuematic actuator torque

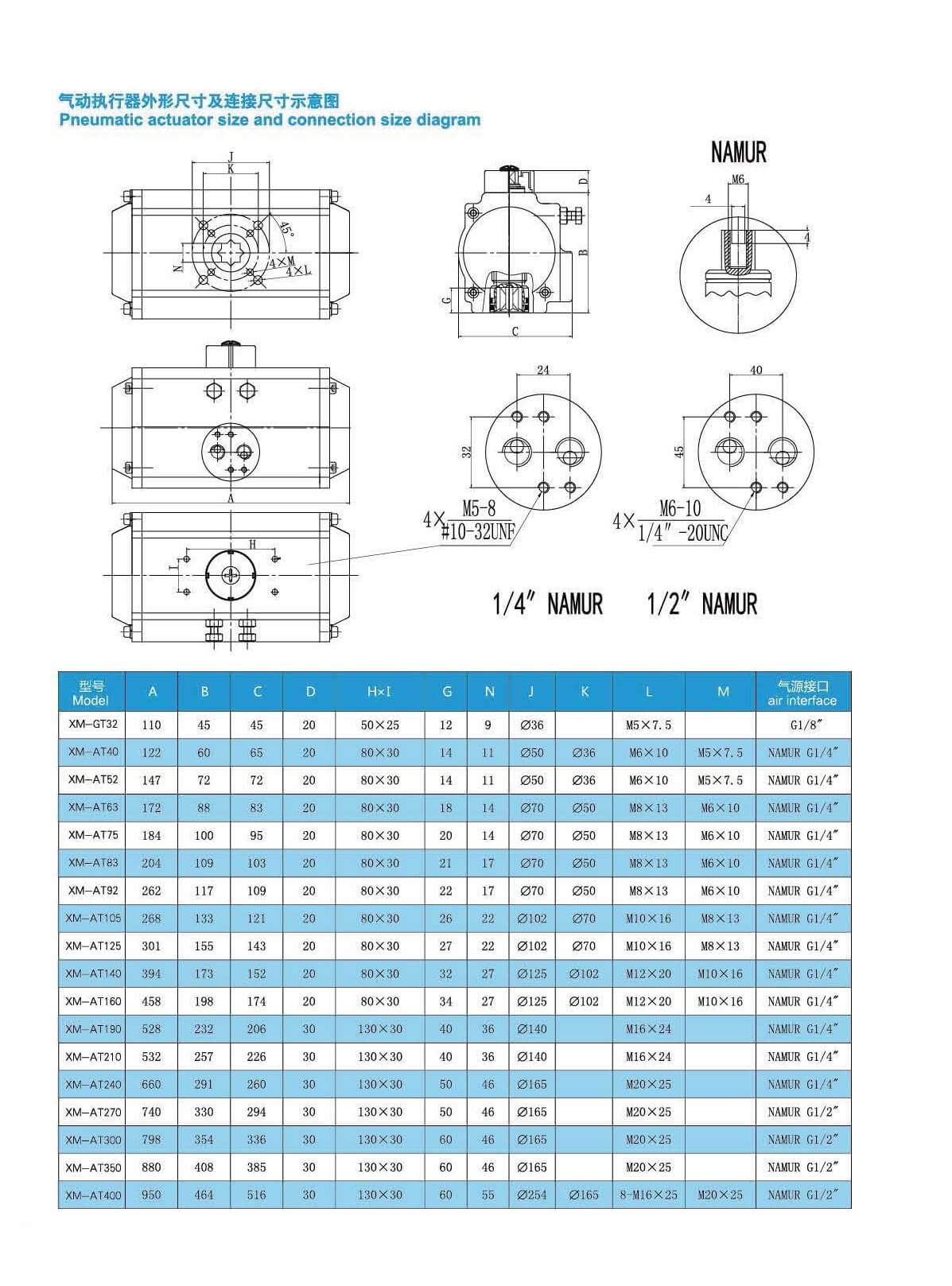

actuator connection size
