Project Description

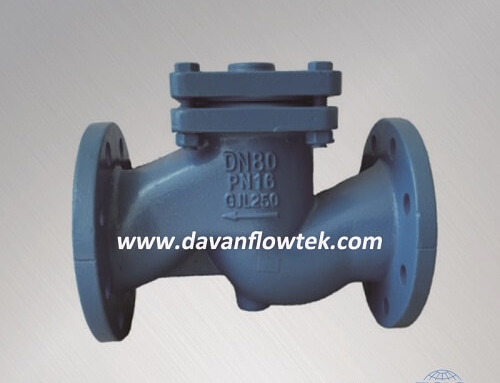

cs lift check valve PN16, which can be used in water supply, oil, gas and drainage project.

cs lift check valve PN16 technical specification:

Nominal Diameter: DN 15-300

Nominal Pressure: PN16/25/40

Design Standard: DIN EN13709-2003

FTF Dimension: DIN EN588-1:1995

Flange Connection: DIN EN1092-1:2002

Inspection and Test: DIN EN12266:2003

cs lift check valve PN16 Material List

1. Body and Bonnet: Stainless Steel ASTM A351 CF8

                                     Stainless Steel ASTM A351 CF8M

                                      WCB ASTM A216 WCB

2. Disc: Stainless Steel ASTM A351 CF8

               Stainless Steel ASTM A351 CF8M

               WCB ASTM A216 WCB

3. Gasket: Graphite+304/316/304L

4. Stud and Nut: A194B8-8/B7-2H
