Project Description
api forged globe valve carbon steel class 1500, which can be used in water supply, oil, gas and drainage project.
api forged globe valve carbon steel class 1500 technical specification:
Nominal Diameter: 1/2-2 inch
Nominal Pressure: Class150-1500
Design Standard: API 602

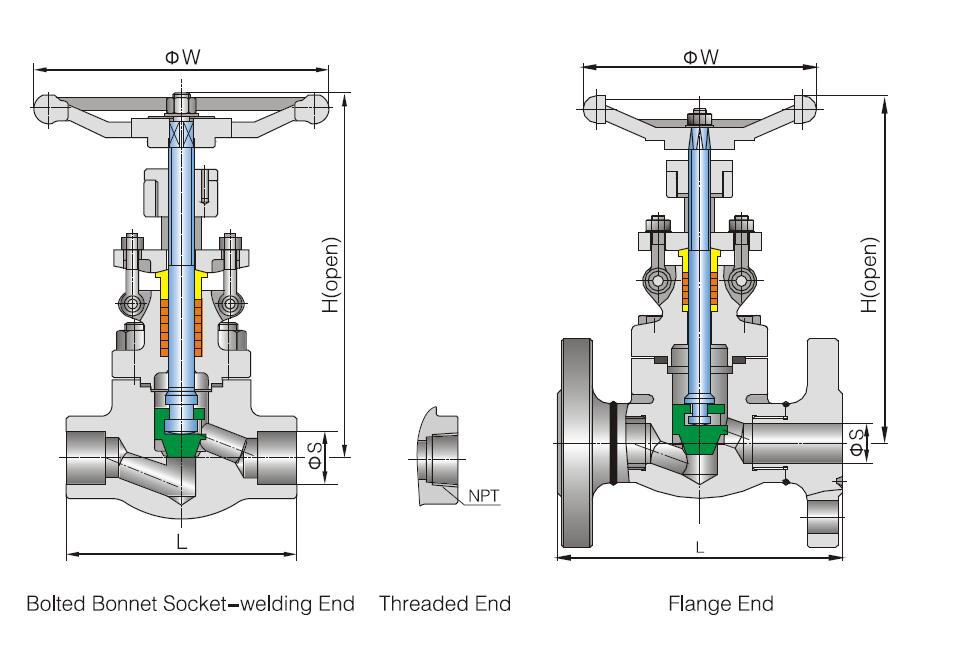

Socket-welding dimension: ASME B16.11
End threads dimension: ASME B1.20.1
Inspection and Test: API 598
api forged globe valve carbon steel class 1500 Material List
1.Body: ASTM A216 WCB/ASTM A351 CF8/CF8M
2.Seat ring: A105+13cr/A105+STL/CF8/CF8M
3.Disc: A105+13cr/A105+STL/CF8/CF8M
4.Stem: ASTM A182 F6a/F304/F316
5.Disc Nut: ASTM A216 WCB/CF8/CF8M
6.Bonnet nut and bolt: ASTM A194 2H/B7
7.Gasket: SS304+Graphite/SS316+Graphite
8.Backseat bushing: ASTM A182 F6a/ASTM A351 CF8/CF8M
9.Bonnet: ASTM A216 WCB/ ASTM A351 CF8/CF8M
10.Packing: Graphite
11.Eyebolt pin: ASTM A36/SS304/SS316
12.Gland: ASTM A182 F6a/F304/F316
13.Gland flange: ASTM A216 WCB/ASTM A351 CF8/CF8M
14. Eyebolt nut: ASTM A194 2H
15.Stem nut: ASTM A439 D2
16. Hand wheel: Ductile iron
