Project Description

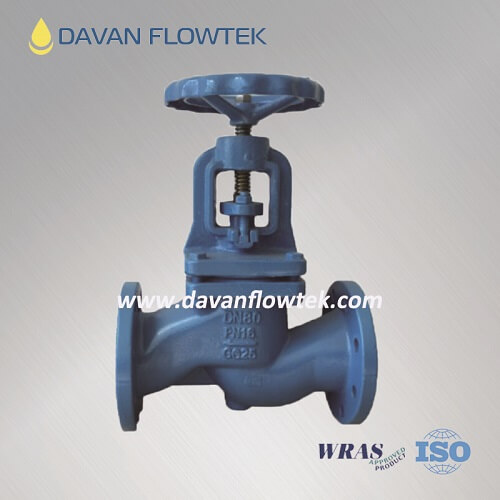

cast iron globe valve DIN standard PN16, which can be used in water supply, oil, gas and drainage project.
cast iron globe valve DIN standard PN16 technical specification:
Nominal Diameter: DN15-300
Nominal Pressure: PN10/16
Design Standard: DIN EN13789
FTF Dimension: EN558-1 SERIES 1
Flange Connection: EN1092-2
Inspection and Test: DIN EN 12266:2003
cast iron globe valve DIN standard PN16 Material List
Body:Ductile Iron GGG40
Disc: Ductile Iron GGG40
Stem: Stainless Steel X20CR13
Bonnet: Ductile Iron GGG40
Bolt& Nut: B7& 2H
Packing: Graphite
Gasket: Graphite
