Project Description
AWWA C509 gate valve rubber wedge, which can be used in water supply and drainage project.
AWWA C509 gate valve rubber wedge technical specification:
Valve Design: AWWC C515/ AWWA C509
Face to Face: ANSI B16.10
Flange Drilling: ANSI B16.1/ ANSI B16.42
Hydraulic Test: AWWA C515/ AWWA C509/ ISO5208
Shell Test Pressure: 375 psi
Sealing Test Pressure: 275 psi
The main advantages of gate valve include:
1. The fluid resistance of the valve is small. Because the valve body of gate valve is straight-through type and the flow of the medium doesn’t change direction, the fluid resistance of it is small compared with other kinds of valves.
2. The sealing performance is better than that of other shut-off valve. The opening and closing of it is more conveniently.
3. The range of applications is more wider. In addition to steam, oil and other media, it can be used in medium containing granular solid and with a large viscosity. It can also be used as air-venting valve and low vacuum system valve.
4. Gate valve has dual flow directions. It’s not subject to the flow directions of the medium. Therefore, it is suitable for use in pipeline where the medium may change the flow direction. It is also easy to install.

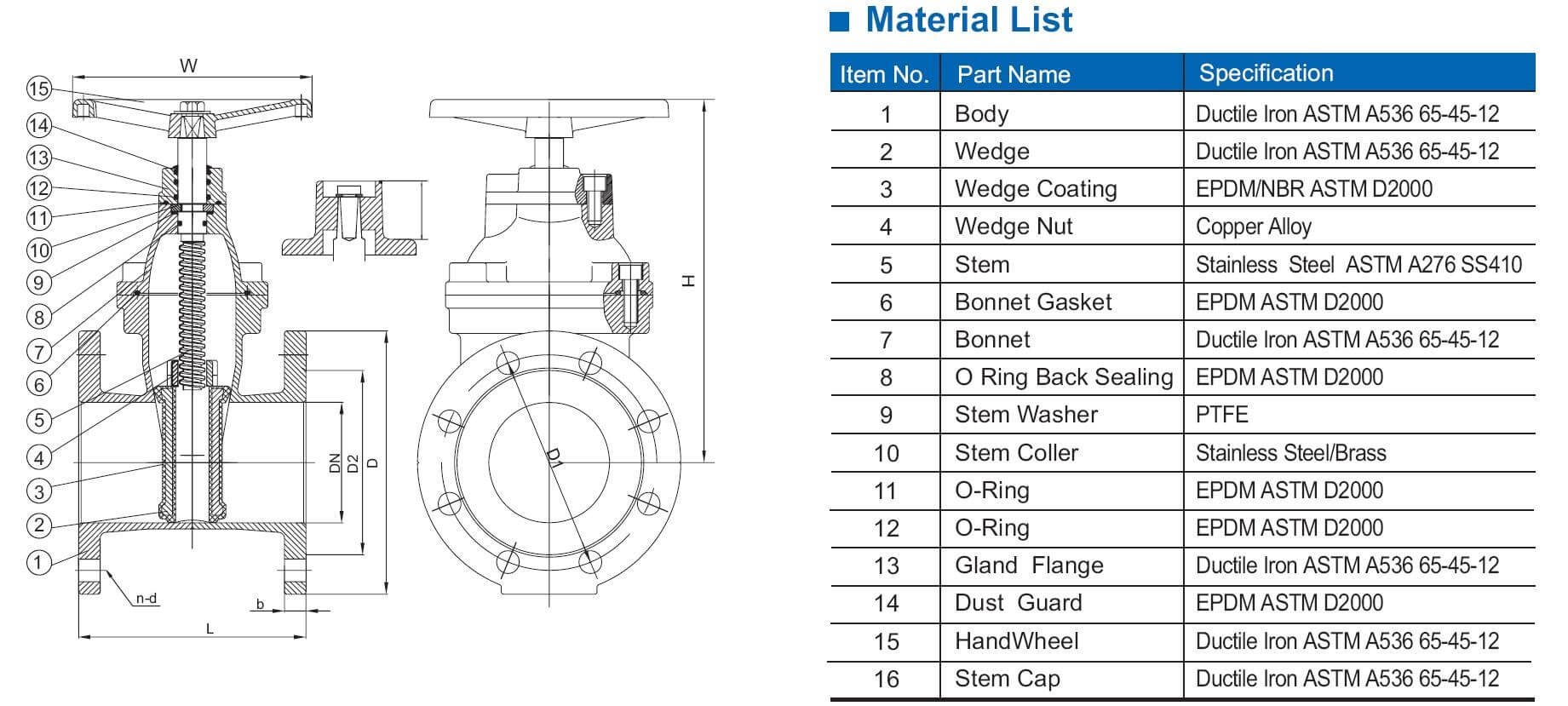

AWWA C509 gate valve rubber wedge material list
Item No. | Part Name | Specification |
1 | Body | Ductile Iron ASTM A536 65-45-12 |
2 | Wedge | Ductile Iron ASTM A536 65-45-12 |
3 | Wedge Coating | NBR/ EPDM ASTM D2000 |
4 | Wedge Nut | Copper Alloy |
5 | Stem | Stainless Steel ASTM A276 SS410 |
6 | Bonnet Gasket | NBR/ EPDM ASTM D200 |
7 | Bonnet | Ductile Iron ASTM A536 65-45-12 |
8 | O Ring Back Sealing | EPDM ASTM D2000 |
9 | Stem Washer | PTFE |
10 | Stem Collar | Stainless Steel/ Brass |
11 | O-Ring | EPDM ASTM D2000 |
12 | O-Ring | EPDM ASTM D2000 |
13 | Gland Flange | Ductile Iron ASTM A536 65-45-12 |
14 | Dust Guard | EPDM ASTM D2000 |
15 | Hand wheel | Ductile Iron ASTM A536 65-45-12 |
9 | Stem Cap | Ductile Iron ASTM A536 65-45-12 |
