bs5163 metal seated gate valve non rising stem

bs5163 metal seated gate valve non rising stem, which can be used in water supply and drainage project.

Details

Details

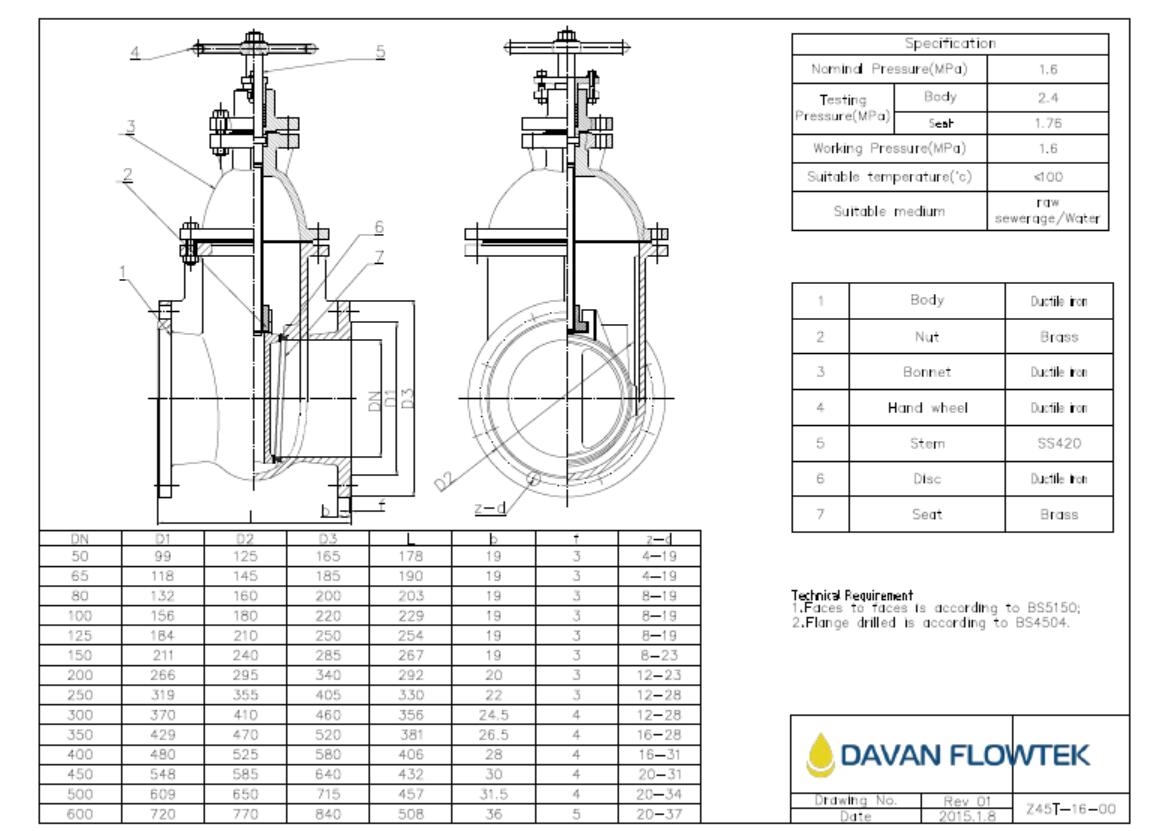

bs5163 metal seated gate valve technical specification:

Nominal Diameter: DN50–DN1400

Nominal Pressure: 10Bar/16Bar

Design Standard: BS5150/BS5163/DIN3352/JIS B2043

FTF Dimension: BS5163/DIN3302 F4/JIS B2002

Flange Connection: ASME B16.1 CL125/ASME B16.5 CL150/

DIN 2501 PN10-16/EN1092 PN10-16 /JIS B2212 10K

Inspection and Test: ISO 5208/EN 12266-1/ API598

The main advantages of gate valve include:

1. The fluid resistance of the valve is small. Because the valve body of gate valve is straight-through type and the flow of the medium doesn’t change direction, the fluid resistance of it is small compared with other kinds of valves.

2. The sealing performance is better than that of other shut-off valve. The opening and closing of it is more conveniently.

3. The range of applications is more wider. In addition to steam, oil and other media, it can be used in medium containing granular solid and with a large viscosity. It can also be used as air-venting valve and low vacuum system valve.

4. Gate valve has dual flow directions. It’s not subject to the flow directions of the medium. Therefore, it is suitable for use in pipeline where the medium may change the flow direction. It is also easy to install.
