Project Description

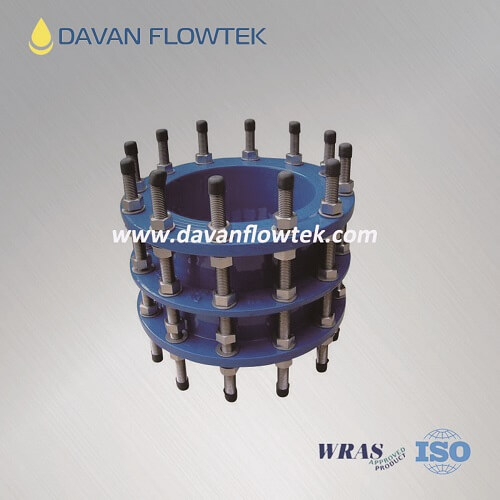

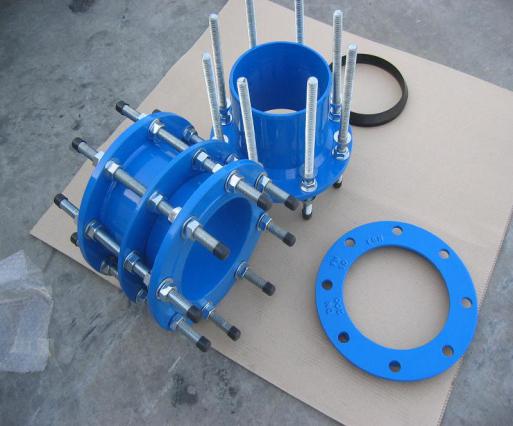

carbon steel dismantling joint flanged PN25, which can be used in water supply and drainage project.

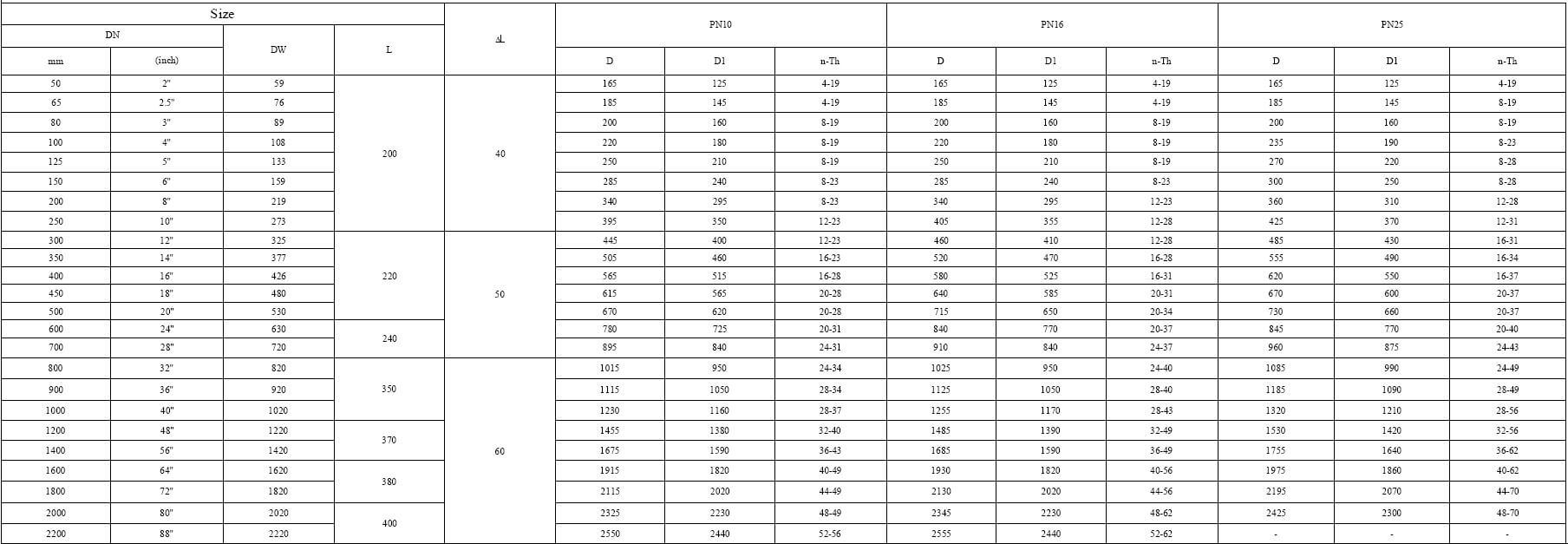

carbon steel dismantling joint flanged PN25 technical specification:
Nominal Diameter: DN80 to DN2200
Nominal Pressure: PN6/10/16/25
Flange Connection: EN1092, ANSI B16.5
Inspection and Test: EN12266-1/API 598

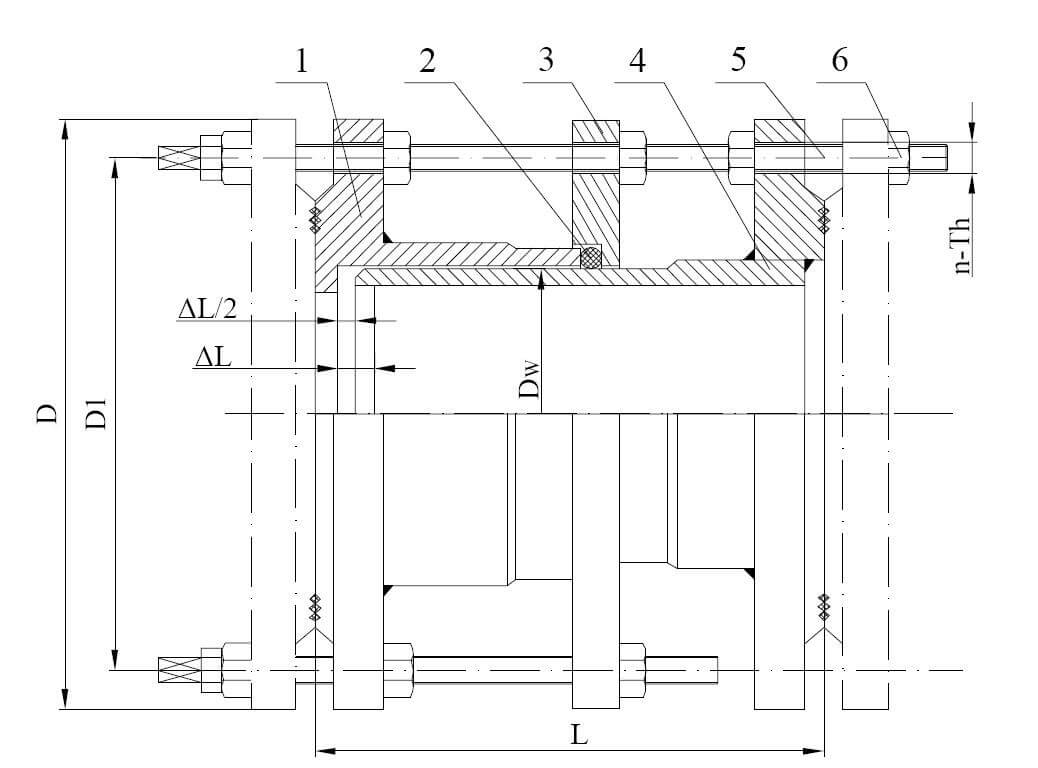

carbon steel dismantling joint flanged PN25 Material List
1. Body: Ductile iron/carbon steel
2. Sealing: EPDM
3. Gland: carbon steel/stainless steel
4. Stud: carbon steel/stainless steel
5. Nut: carbon steel/stainless steel
6. Gasket: carbon steel/stainless steel
