Project Description

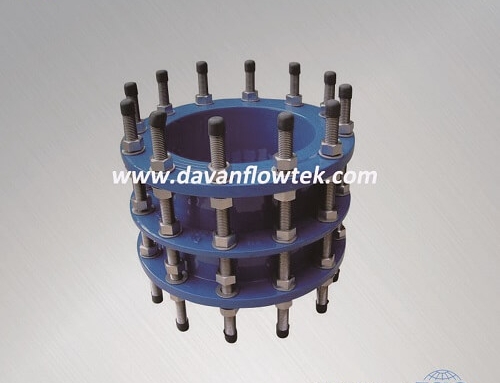

ductile iron dismantling joint flanged PN16, which can be used in water supply and drainage project.

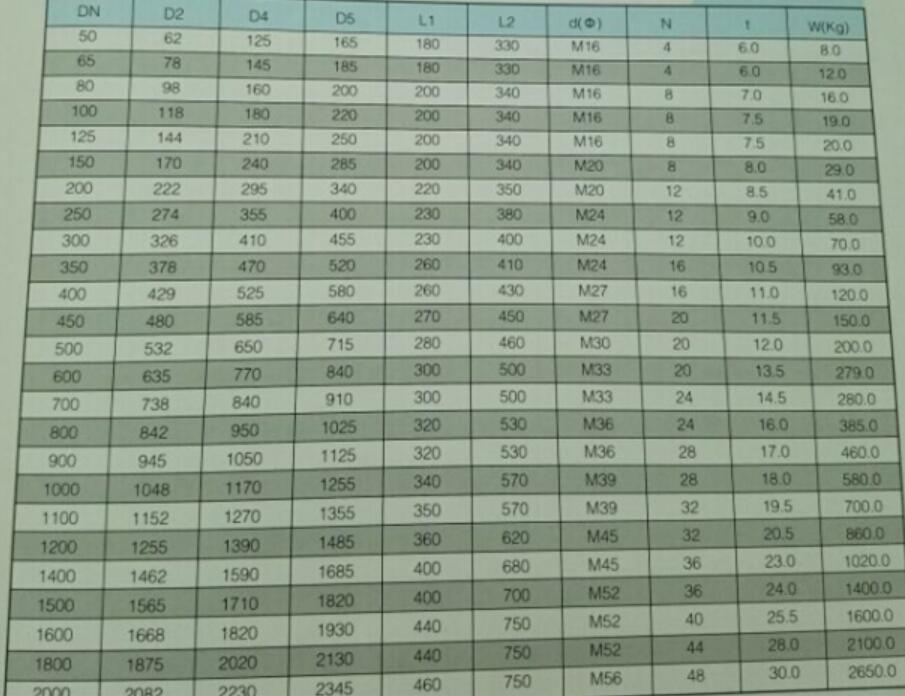

ductile iron dismantling joint flanged PN16 technical specification:
Nominal Diameter: DN80 to DN2000
Nominal Pressure: PN6/10/16
Flange Connection: EN1092, ANSI B16.5
Inspection and Test: EN12266-1/API 598

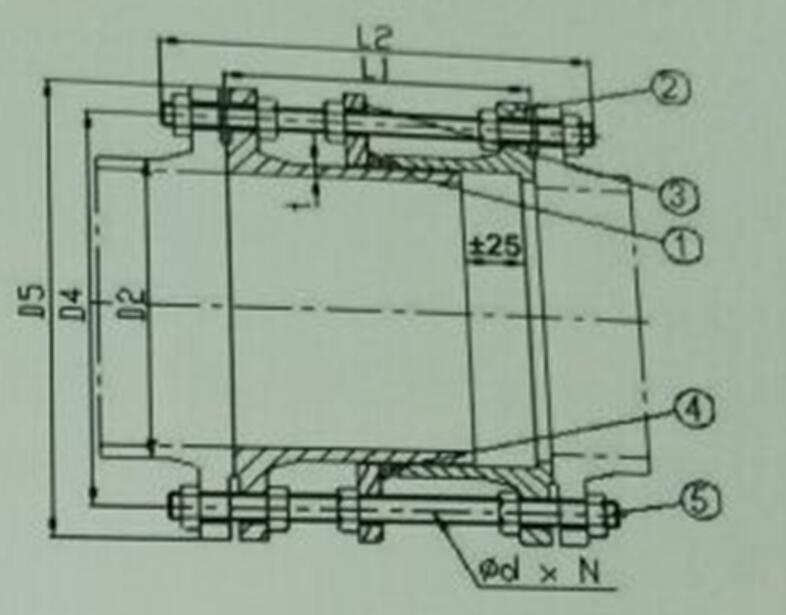

ductile iron dismantling joint flanged PN16 Material List
1. Body: Ductile iron/carbon steel
2. Sealing: EPDM
3. Gland: carbon steel/stainless steel
4. Stud: carbon steel/stainless steel
5. Nut: carbon steel/stainless steel
6. Gasket: carbon steel/stainless steel
