Project Description

flange adaptor ductile iron for pipe connection use, which can be used in water supply and drainage project.

flange adaptor ductile iron for pipe connection use technical specification:

Flanged adaptors are designed for pipelines, as a wide tolerance system.

It will fit most standard pipe materials and therefore dramatically reduces the number of dedicated

Flanged adaptors which need to be stocked for maintenance purposes.

It is suitable for steel , GRP, PVC, PE, Ductile Iron Cast Iron and asbestors Cement.

When connecting PE pipes , it is important that pipe inserts are fitted to the PE pipes

all flange tee ductile iron EN545 Material List

Bolts & Nuts : Electroplated galvanized BS729:1971, ISO1461

Sleeve: Ductile Iron BS2789:1985 Grade420/12

Gland: Ductile Iron BS2789:1985 Grade420/12

Rubber Gasket: SBR ,EPDM or other BS 2494:1990 Type W

Coating: Fusion Bonded Epoxy /  Painting

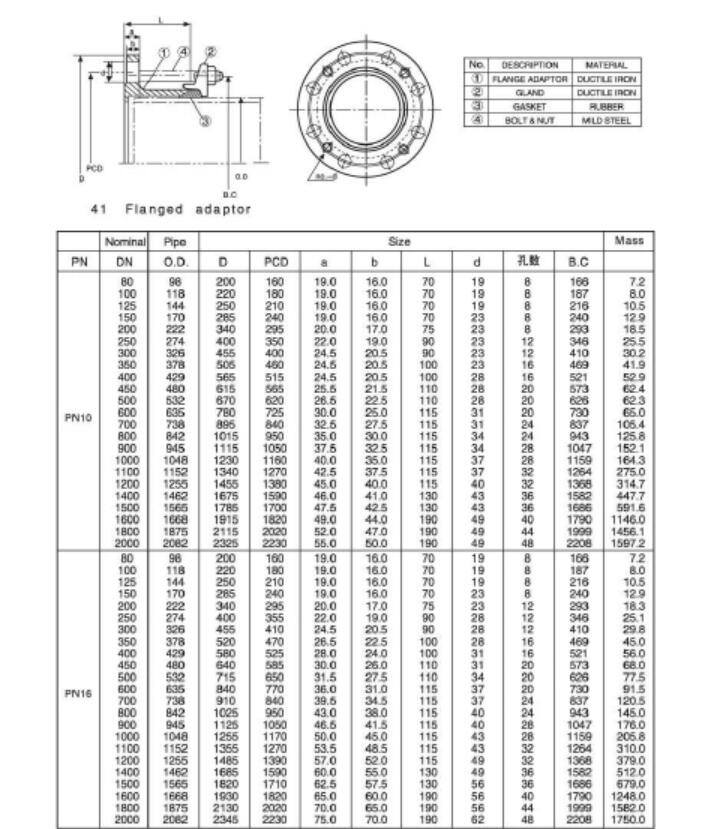

flange adaptor drawing
