Project Description

JIS B2062 10k gate valve resilient seat, which can be used in water supply and drainage project.

JIS B2062 10k gate valve resilient seat technical specification:

Valve Design: JIS B2062/ KS B2332

Face to Face: JIS B2002

Flange Drilling: JIS B2239

Hydraulic Test: JIS B2003/ ISO 5208

Shell Test Pressure: 24 bar

Sealing Test Pressure: 17.6 bar

The main advantages of gate valve include:

1. The fluid resistance of the valve is small. Because the valve body of gate valve is straight-through type and the flow of the medium doesn’t change direction, the fluid resistance of it is small compared with other kinds of valves.

2. The sealing performance is better than that of other shut-off valve. The opening and closing of it is more conveniently.

3. The range of applications is more wider. In addition to steam, oil and other media, it can be used in medium containing granular solid and with a large viscosity. It can also be used as air-venting valve and low vacuum system valve.

4. Gate valve has dual flow directions. It’s not subject to the flow directions of the medium. Therefore, it is suitable for use in pipeline where the medium may change the flow direction. It is also easy to install.

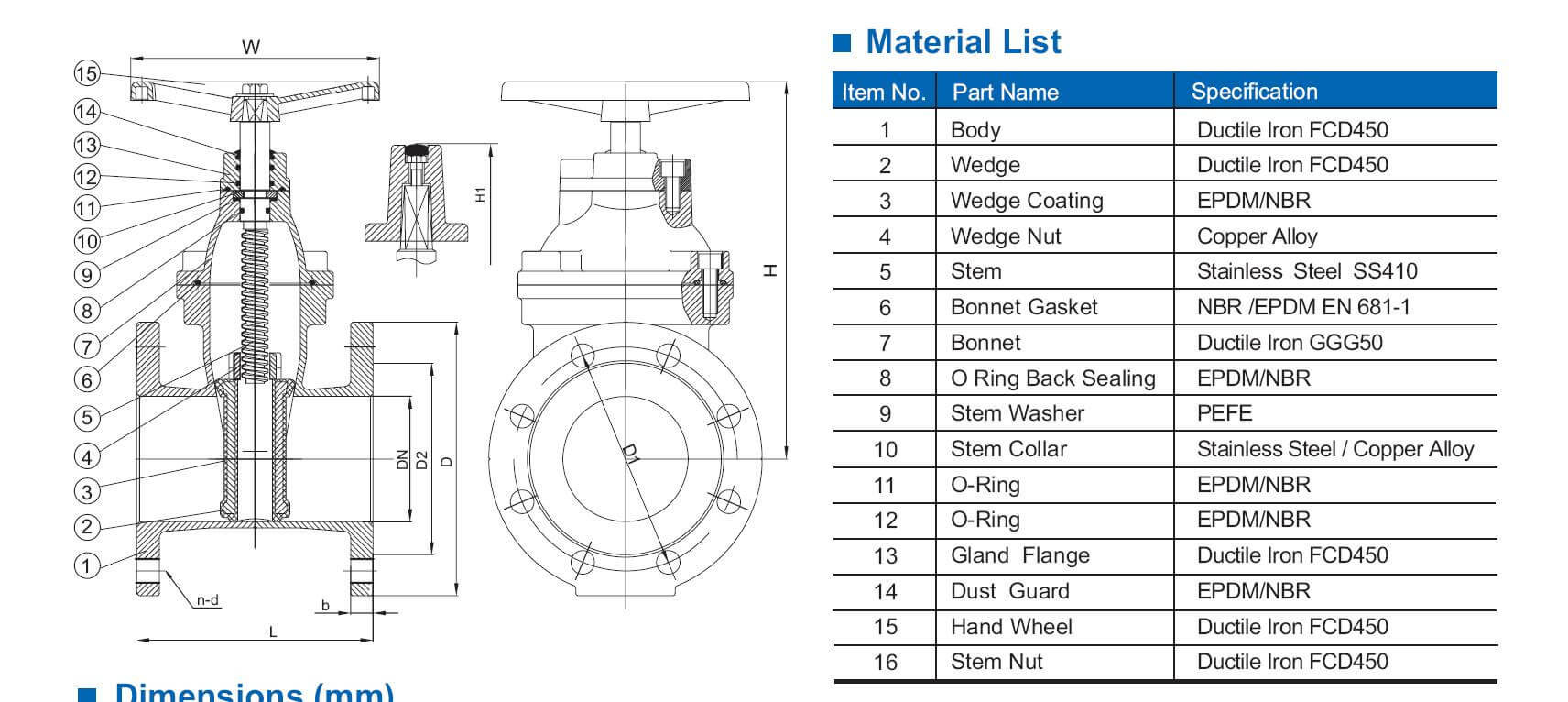

JIS B2062 10k gate valve resilient seat material list

resilient seat gate valve with bonnet cap

Item No.

Part Name

Specification

1

Body

Ductile Iron FCD450

2

Wedge

Ductile Iron FCD450

3

Wedge Coating

NBR/ EPDM

4

Wedge Nut

Copper Alloy

5

Stem

Stainless Steel SS410

6

Bonnet Gasket

NBR/ EPDM EN681-1

7

Bonnet

Ductile Iron FCD450

8

O Ring Back Sealing

EPDM/ NBR

9

Stem Washer

PTFE

10

Stem Collar

Stainless Steel/ Copper Alloy

11

O-Ring

EPDM/ NBR

12

O-Ring

EPDM/ NBR

13

Gland Flange

Ductile Iron FCD450

14

Dust Guard

EPDM/ NBR

15

Hand wheel

Ductile Iron FCD450

16

Stem Cap

Ductile Iron FCD450
