single bend repair clamp stainless steel PN16

single bend repair clamp stainless steel PN16 technical specification:

O.D.Range: 59mm-1260mm

Length: 150-2000mm

Pressure: PN6-16

Products Features:

CR series is good at repairing pin holes and breaks caused by aging or rusting, which can seal under pressure and no need of changing pipes. The advantages are safe, convenient and efficiency, and it can be installed without any other tool. The repair clamp is highly optimized for general use and has few requirements on the ellipticity of pipe arc.

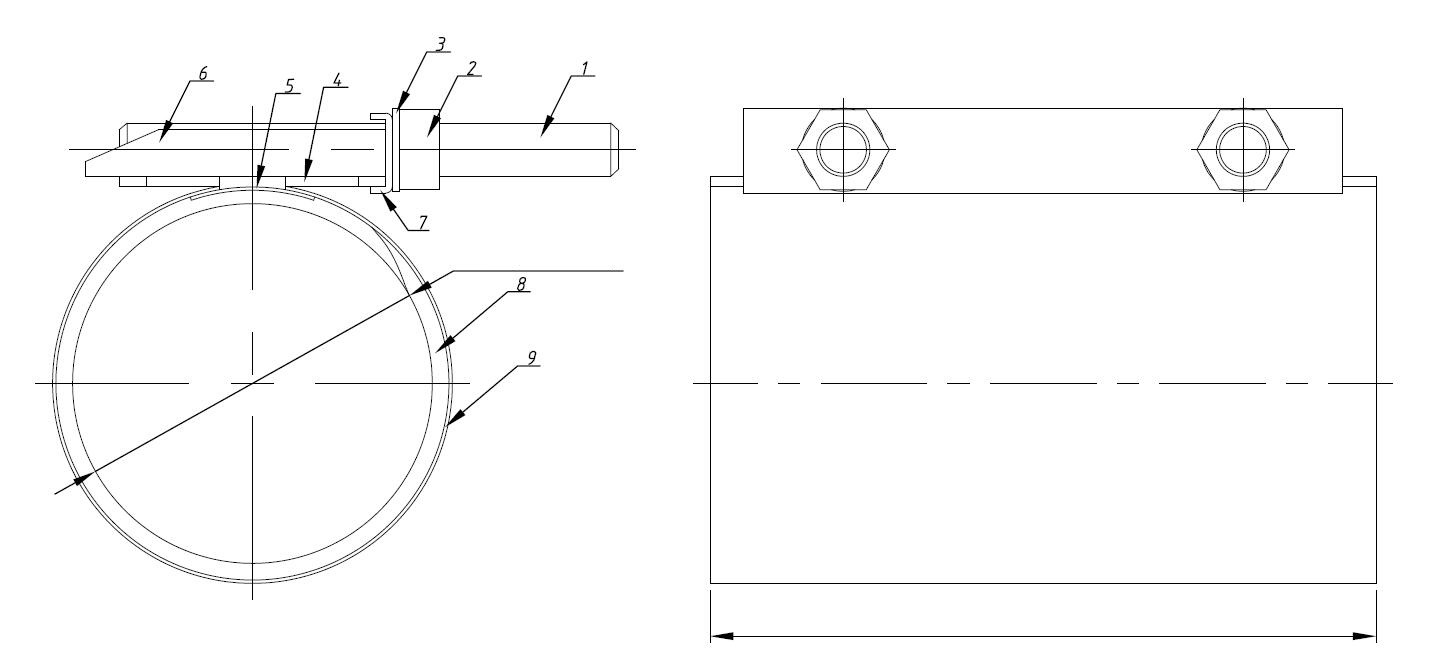

single bend repair clamp stainless steel PN16 Material List

1.Bolts: SS304/SS316 with or without Teflon

2.Nuts: SS304/SS316 with or without Teflon

3.Gasket: SS304/SS316

4.Backpanet: SS304/SS316

5.Lining Plate: SS304/SS316

6. Detlector: SS304/SS316

7. Buckle: SS304/SS316

8. Rubber Sealing cylinder: EPDM/NBR/SBR

9. Outer casing: SS304/SS316

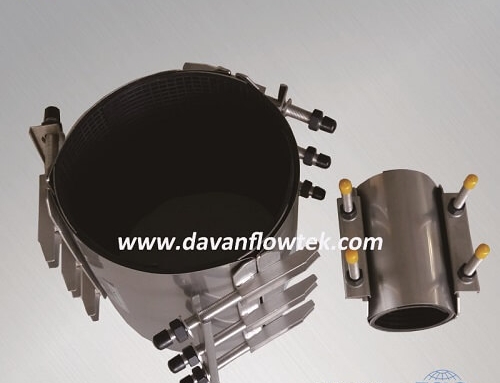

Davan Flowtek stainless steel repair clamp is a simple, quick and solid solution for repairs to pipes made of steel, copper, asbestos cements, cast iron and plastic pipes. Our stainless steel repair clamp can be used for the permanent repair of cracks, holes or complete breakages in pipes or for tapping. Davan Flowtek stainless steel repair clamp can be made of high quality SS 304 or SS 316. After welding procedures, the stainless steel repair clamp is completely passivated to guarantee optimum corrosion resistance. The clamp can be offered with EPDM and NBR. Davan produce several types of high quality stainless steel repair clamps, also specialties, see the other pages in our website:
