Project Description

double bend repair clamp stainless steel PN16, which can be used in water supply and drainage project.

double bend repair clamp stainless steel PN16 technical specification:

O.D.Range: 59mm-1260mm

Length: 150-2000mm

Pressure: PN6-16



Products Features:

CR series is good at repairing pin holes and breaks caused by aging or rusting, which can seal under pressure and no need of changing pipes. The advantages are safe, convenient and efficiency, and it can be installed without any other tool. The repair clamp is highly optimized for general use and has few requirements on the ellipticity of pipe arc

double bend repair clamp stainless steel PN16 Material List

1.Bolts: SS304/SS316 with or without Teflon

2.Nuts: SS304/SS316 with or without Teflon

3.Gasket: SS304/SS316

4. Backpanet: SS304/SS316

5.Lining Plate: SS304/SS316

6. Detlector: SS304/SS316

7. Buckle: SS304/SS316

8. Rubber Sealing cylinder: EPDM/NBR/SBR

9. Outer casing: SS304/SS316

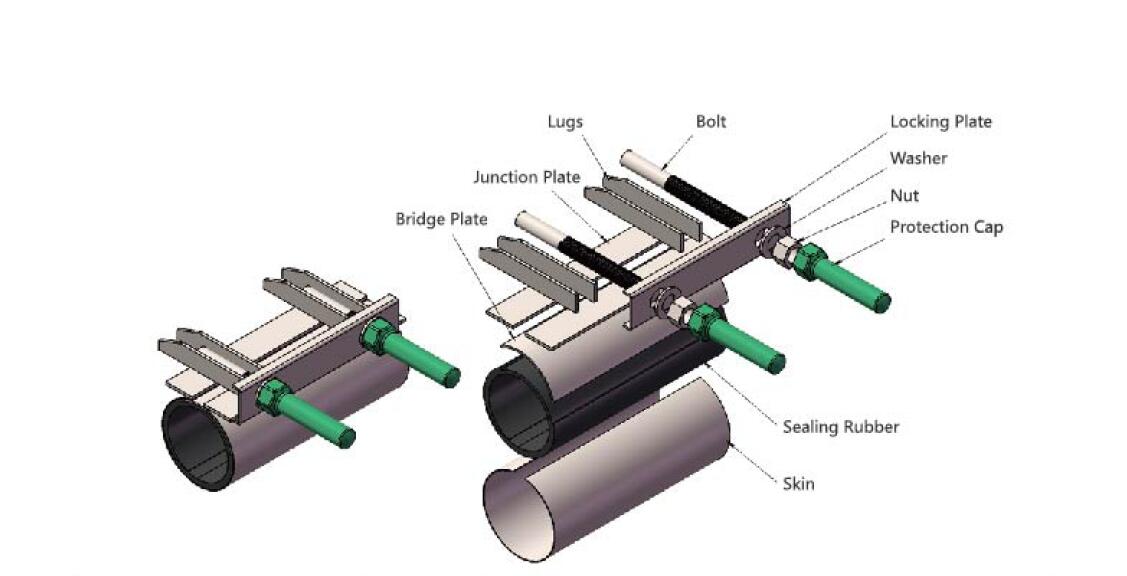

repair clamp specification

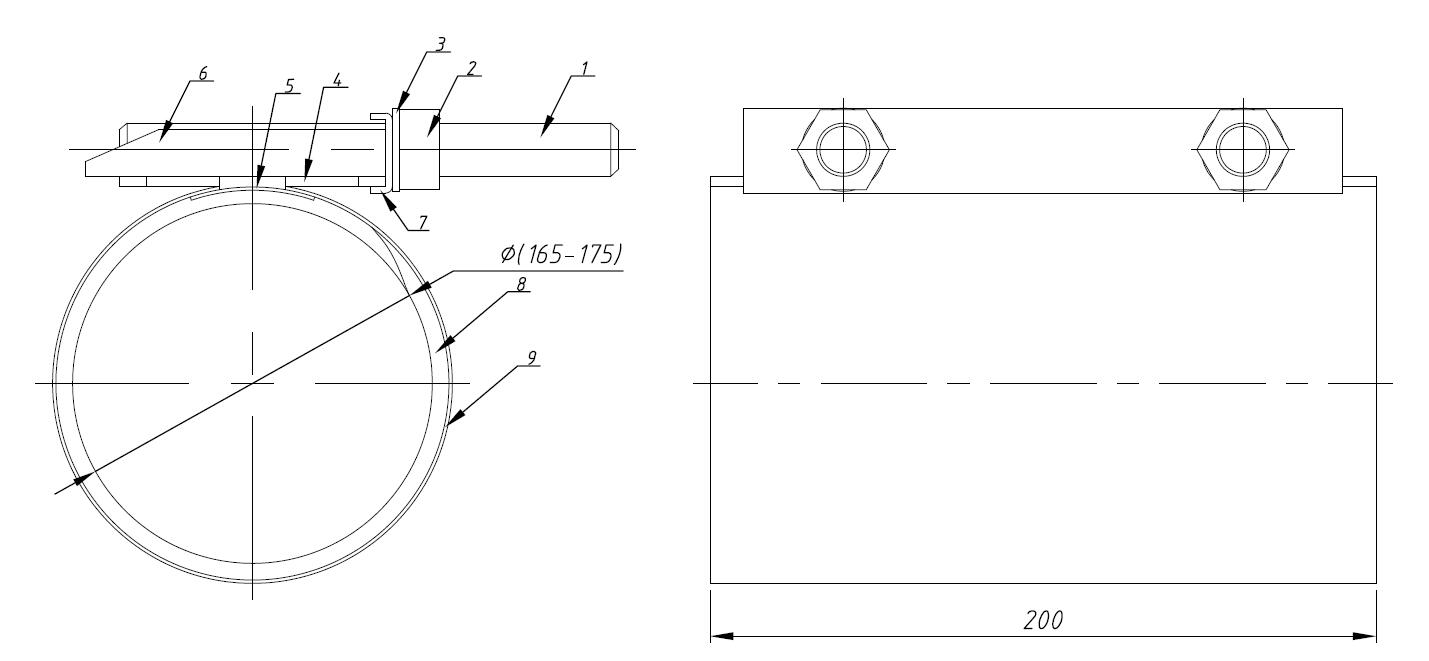

single bend repair clamp size

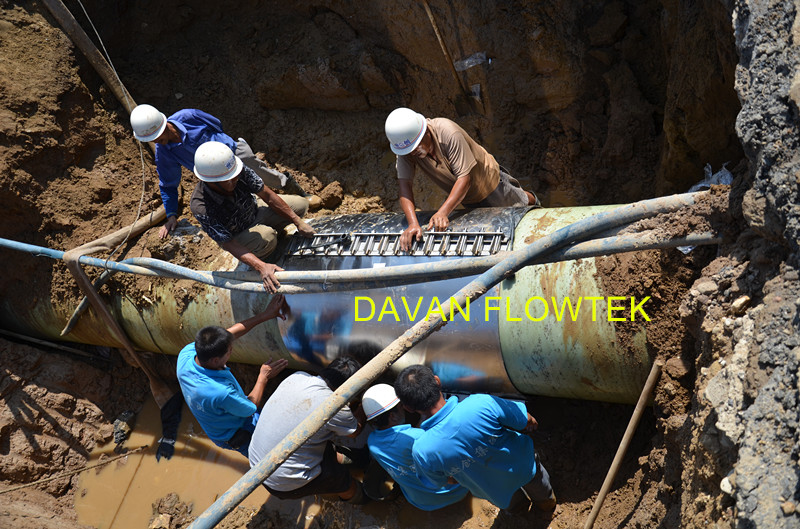

Project site for pipe repairing of DN1800

dn1800 pipe repair
