Project Description

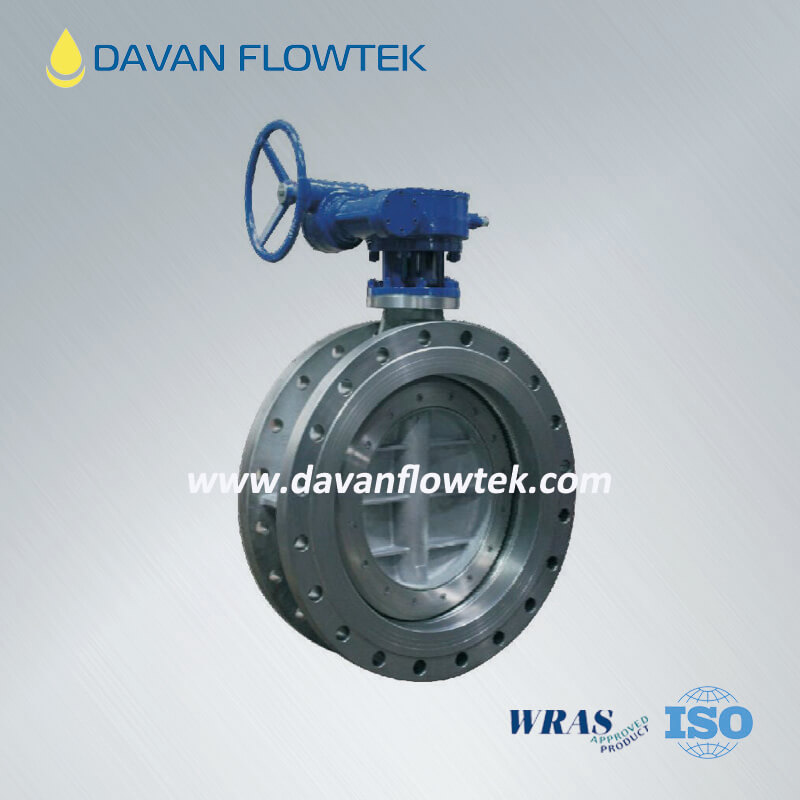

triple eccentric butterfly valve metal seal flange type, which can be widely used in water supply and drainage project.

triple eccentric butterfly valve metal seal flange type Technical Specification:

Nominal Diameter: DN50-2400

Design standard:  API609/ AWWA C504/ EN BS5155/ DIN 3354

Face to Face Dimensions: ASME B16.10/AWWA C504/ EN558/DIN 3202

Flange connection: ASME B16.5/ASME B16.47/AWWA C207/EN 1092/DIN 2542-2545

Test and Inspection: API 598/AWWA C504/EN12266-1/ DIN3230

Pressure: PN6/10/16/40/63

                     CLASS 125/150/300/600

Advantages of a Butterfly Valve

Butterfly valves are similar as ball valves but have more advantages. They are open and close very quickly when actuated pneumatically. The disc is more lighter than a ball, and the valves require less structural support than a ball valve of comparable diameter. Butterfly valves are very precise, which makes them advantageous in industrial applications. They are quite reliable and require very little maintenance.

1. Turning on/off easily and rapidly with less force. Having less fluid resistance and can be operated frequently.
2. Simple structure, small size ans short face to face dimension, which suitable for large diameter valves.
3. Can be used for transmitting mud, less liquids are stored at apertures of pipe.
4. Long service life. Standing the test of tens of thousands opening/closing operations.
5. Butterfly valves have excellent regulation performance.
7. Small torque. The pressure on disc at the two sides of spindle is almost equal, causing contrary torque. Thereby, the valves can be opened with less force.
8. Sealing face is generally med of rubber or plastic. So the butterfly valves can be with good sealing under low pressure.

triple eccentric butterfly valve metal seal flange type Material List:

1. End cap:  Carbon steel/ Stainless steel

2. Thrust Ring:  Carbon steel/ Stainless Steel

3. Stem:  F6a/SS420/SS316/SS304/17-4PH

4. Body:  Carbon steel/ Stainless steel

5. Seal Ring:  SS+graphite gasket/ PTFE

6. Retainer Ring:  Carbon steel/ Stainless steel

7. Disc:  Carbon steel/ Stainless steel

8. Pin:  F6a/SS420/SS316/SS304/17-4PH

9. Packing:  Graphite/ PTFE

10. Gland:  Carbon steel

11. Bolt:  Carbon steel/ Stainless steel

12. Nut:  Carbon steel/ Stainless steel

13. Yoke:  Carbon steel
