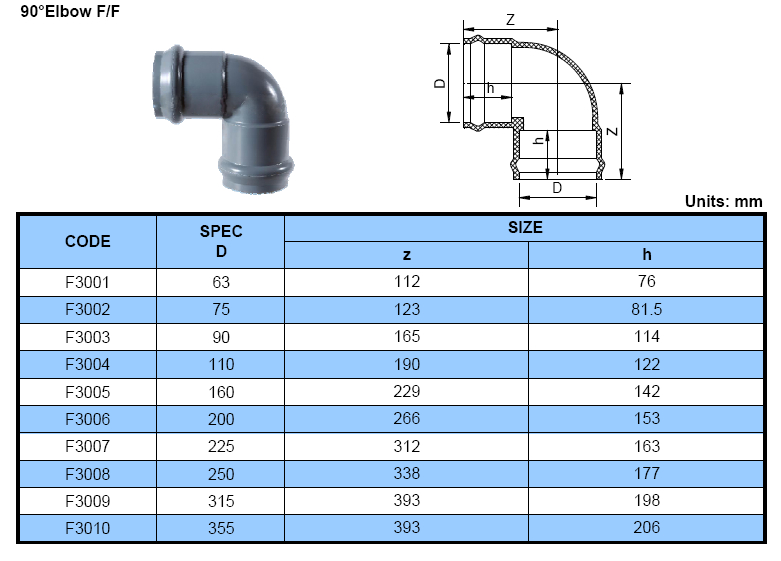

upvc 90 degree elbow for water pipe, which can be used in water supply and drainage project.
upvc 90 degree elbow for water pipe technical specification:
1、Light Weight: the weight is only 1/6 of the iron pipe with same length.
2、High Tensile Strength: tensile strength is over 45 Mpa
3、Low Water Resistance: smooth inner-wall; the loss volume of water should be 30% less than casting pipes, which can save lots of operating power.
4、Corrosion Resistance: good resistance to acid, alkali and chemicals; electrical corrosion resistance; no pitting corrosion when during service.
5、Easy Installation: flexible connection, rubber-ring sealing; easy installation, tight sealing.
6、Long Service Life: service life is more than 50 years under appropriate temperature and pressure.
7、Non-toxic and hygiene: can be used for drinkable water, avoid the second pollution.
8、Low cost: high quality product with favorable price; low cost for transportation and installation; the total cost should be 30% less than casting pipes.
upvc 90 degree elbow for water pipe Material List
1. Material: UPVC
2. Size: DN110-DN315
3. Pressure: 0.63-2.0 Mpa
4. Color: Grey, White,Blue,Orange
5. Media: Water
6. Standard: JIS, ANSI, DIN;
7. Certification: ISO/GB
