Project Description

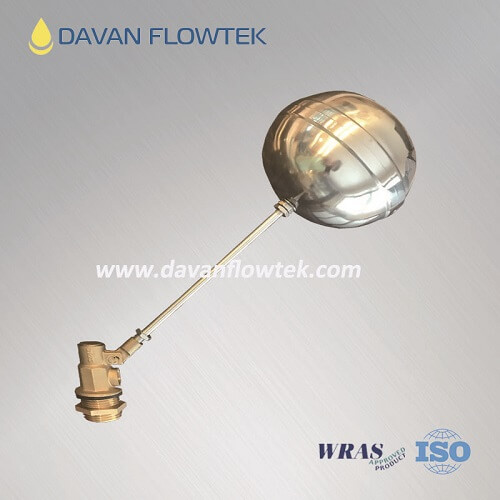

brass float ball valve NPT threaded connection for water tank, which can be used in water supply project

Floating ball valve is a valve which will have air filled ball. This air filled ball will control the inflow of water.When water level is low then it will allow the water to come inside the tank. If water reaches to certain level then it will stop the water to come in. This instrument will not be suitable for high pressure applications

brass float ball valve NPT threaded connection for water tank technical specification:

Nominal pressure: PN16

Nominal Size: DN15-DN50

Working Medium: Water/Non-corrosive liquid

Pipe Threaded: NPT/BSPT/ISO 228

Working Temp: -20 to 150 degree Celsius

brass float ball valve NPT threaded connection for water tank Material List

1.Body: Brass

2.Seal gasket: NBR

3.Disc: Brass

4.Pin: Brass

5.Pull Road: SS201/SS304/SS316

6. Float ball: SS201/SS304/SS316

Advantages of float ball valve:

No need to monitor/control the inflow of water in Sump. Water will be stopped once it reached pipe level

Good sealing, big flow rate and long life.

Self-locking and stability.

Unique and novel design with excellent performance.

Non-pollution and environmental protection.

Convenient installation an easy to control water level.

OEM and small order are acceptable. There will be a discount for a big order. Contact us if you need more information and service!

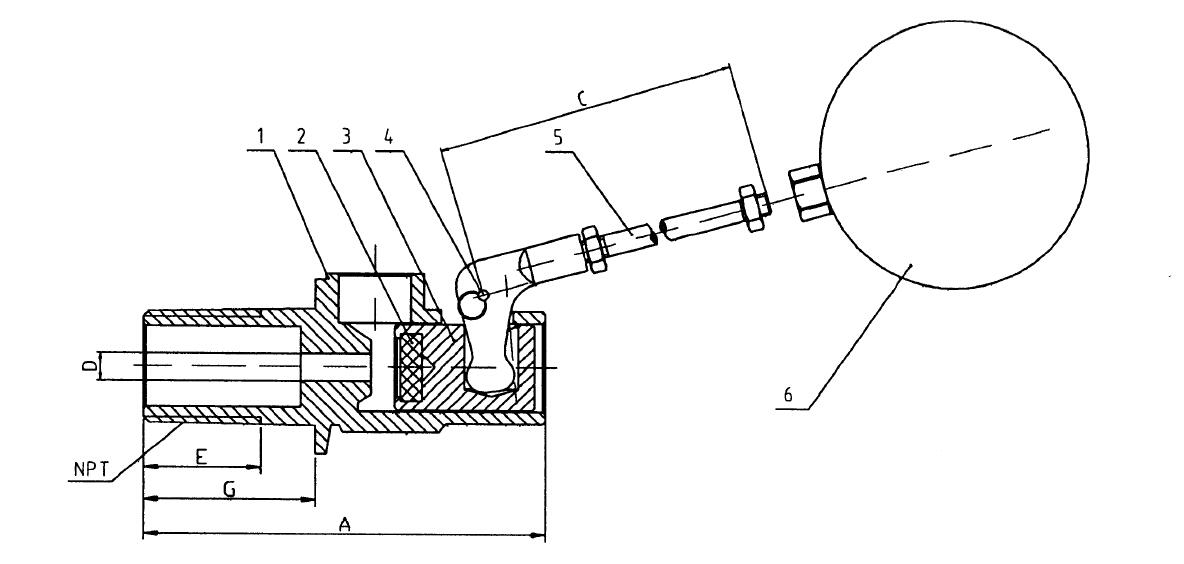

float ball valve size

float ball valve packing
